同轴转接器是电子测量中必不可少的重要部件,无论测试仪表还是DUT,无论线缆还是附件,处处都有形形色色的不同转接器的身影,用于不同接口间的适配转换。
洛仑提供 DC - 110 GHz 范围内的常用精密转接器,具有优异的电压驻波比(VSWR),且经久耐用、性能稳定。
1.0 mm | 1.85 mm | 2.4 mm | 2.92 mm | 3.5 mm | SMA | N | 7/16 | |
1.0 mm | √ | √ | ||||||
1.85 mm | √ | √ | √ | √ | ||||
2.4 mm | √ | √ | √ | √ | √ | |||
2.92 mm | √ | √ | √ | √ | √ | |||
3.5 mm | √ | √ | √ | √ | √ | |||
SMA | √ | √ | √ | √ | ||||
N | √ | √ | √ | √ | √ | √ | ||
7/16 | √ | √ | √ | |||||
Please don't hesitate to contact us if you need other adapters. |
转接器式样
31 | 32 | 33 | ||||

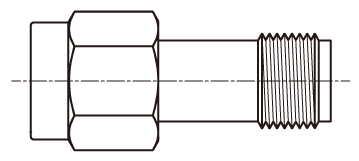

female-female | male-male | male-female | ||||
34 | 35 | 36 | ||||

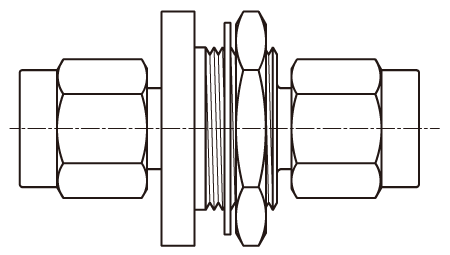

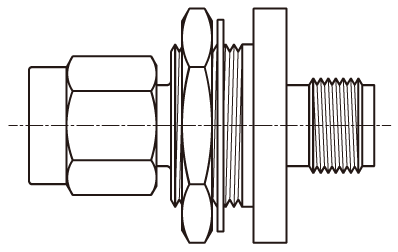

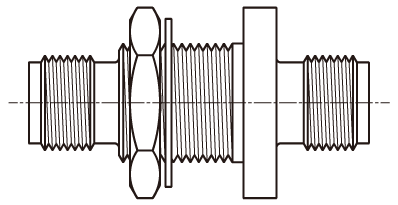

Bulkhead, female-female | Bulkhead, male-male | Bulkhead, male-female | ||||
37 | 38 | 39 | ||||

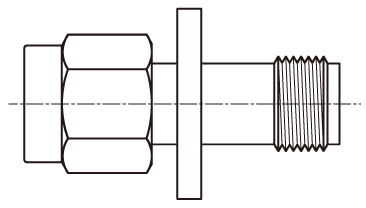

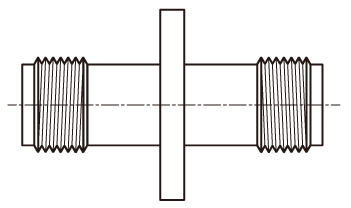

Panel, female-female) | Panel, male-male | Panel, male-female | ||||
51 | 52 | 53 | ||||

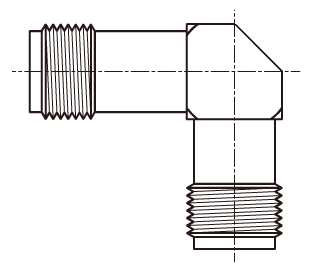

L-adapter, female-female | L-adapter, male-male | L-adapter, male-female |
同轴转接器是电子测量中必不可少的重要部件,无论测试仪表还是DUT,无论线缆还是附件,处处都有形形色色的不同转接器的身影,用于不同接口间的适配转换。
洛仑提供 DC - 110 GHz 范围内的常用精密转接器,具有优异的电压驻波比(VSWR),且经久耐用、性能稳定。
1.0 mm | 1.85 mm | 2.4 mm | 2.92 mm | 3.5 mm | SMA | N | 7/16 | |
1.0 mm | √ | √ | ||||||
1.85 mm | √ | √ | √ | √ | ||||
2.4 mm | √ | √ | √ | √ | √ | |||
2.92 mm | √ | √ | √ | √ | √ | |||
3.5 mm | √ | √ | √ | √ | √ | |||
SMA | √ | √ | √ | √ | ||||
N | √ | √ | √ | √ | √ | √ | ||
7/16 | √ | √ | √ | |||||
Please don't hesitate to contact us if you need other adapters. |
转接器式样
31 | 32 | 33 | ||||
female-female | male-male | male-female | ||||
34 | 35 | 36 | ||||
Bulkhead, female-female | Bulkhead, male-male | Bulkhead, male-female | ||||
37 | 38 | 39 | ||||
Panel, female-female) | Panel, male-male | Panel, male-female | ||||
51 | 52 | 53 | ||||
L-adapter, female-female | L-adapter, male-male | L-adapter, male-female |
1.0mm - 1.0mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_10-10-50_3C1 | 1.0mm-female | 1.0mm-female | DC - 110 GHz | ≤ 1.35 | |
32_10-10-50_3C1 | 1.0mm-male | 1.0mm-male | DC - 110 GHz | ≤ 1.35 | |
33_10-10_50_3C1 | 1.0mm-male | 1.0mm-female | DC - 110 GHz | ≤ 1.35 |
1.0mm - 1.85mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_10-185-50_3C1 | 1.0mm-female | 1.85mm-female | DC - 67 GHz | ≤ 1.30 | |
32_10-185-50_3C1 | 1.0mm-male | 1.85mm-male | DC - 67 GHz | ≤ 1.30 | |
33_10-185-50_3C1 | 1.0mm-male | 1.85mm-female | DC - 67 GHz | ≤ 1.30 | |
33_185-10-50_3C1 | 1.85mm-male | 1.0mm-female | DC - 67 GHz | ≤ 1.30 |
1.85mm - 1.85mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_185-185-50_3C1 | 1.85mm-female | 1.85mm-female | DC - 67 GHz | ≤ 1.25 | |
32_185-185-50_3C1 | 1.85mm-male | 1.85mm-male | DC - 67 GHz | ≤ 1.25 | |
33_185-185-50_3C1 | 1.85mm-male | 1.85mm-female | DC - 67 GHz | ≤ 1.25 | |
34_185-185-50_3C1 | 1.85mm-female | 1.85mm-female | DC - 67 GHz | ≤ 1.30 | |
37_185-185-50_3C1 | 1.85mm-female | 1.85mm-female | DC - 67 GHz | ≤ 1.25 |
1.85mm - 2.4mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_185-24-50_3C1 | 1.85mm-female | 2.4mm-female | DC - 50 GHz | ≤ 1.20 | |
32_185-24-50_3C1 | 1.85mm-male | 2.4mm-male | DC - 50 GHz | ≤ 1.20 | |
33_185-24-50_3C1 | 1.85mm-male | 2.4mm-female | DC - 50 GHz | ≤ 1.20 | |
33_24-185-50_3C1 | 2.4mm-male | 1.85mm-female | DC - 50 GHz | ≤ 1.20 |
1.85mm - 2.92mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_185-292-50_3C1 | 1.85mm-female | 2.92mm-female | DC - 40 GHz | ≤ 1.15 | |
32_185-292-50_3C1 | 1.85mm-male | 2.92mm-male | DC - 40 GHz | ≤ 1.15 | |
33_185-292-50_3C1 | 1.85mm-male | 2.92mm-female | DC - 40 GHz | ≤ 1.15 | |
33_292-185-50_3C1 | 2.92mm-male | 1.85mm-female | DC - 40 GHz | ≤ 1.15 |
2.4mm - 2.4mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_24-24-50_3C1 | 2.4mm-female | 2.4mm-female | DC - 50 GHz | ≤ 1.20 | |
32_24-24-50_3C1 | 2.4mm-male | 2.4mm-male | DC - 50 GHz | ≤ 1.20 | |
33_24-24-50_3C1 | 2.4mm-male | 2.4mm-female | DC - 50 GHz | ≤ 1.20 | |
34_24-24-50_3C1 | 2.4mm-female | 2.4mm-female | DC - 50 GHz | ≤ 1.20 | |
37_24-24-50_3C1 | 2.4mm-female | 2.4mm-female | DC - 50 GHz | ≤ 1.20 |
2.4mm - 2.92mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_24-292-50_3C1 | 2.4mm-female | 2.92mm-female | DC - 40 GHz | ≤ 1.15 | |
32_24-292-50_3C1 | 2.4mm-male | 2.92mm-male | DC - 40 GHz | ≤ 1.15 | |
33_24-292-50_3C1 | 2.4mm-male | 2.92mm-female | DC - 40 GHz | ≤ 1.15 | |
33_292-24-50_3C1 | 2.92mm-male | 2.4mm-female | DC - 40 GHz | ≤ 1.15 |
2.4mm - 3.5mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_24-35-50_3C1 | 2.4mm-female | 3.5mm-female | DC - 26.5 GHz | ≤ 1.15 | |
32_24-35-50_3C1 | 2.4mm-male | 3.5mm-male | DC - 26.5 GHz | ≤ 1.15 | |
33_24-35-50_3C1 | 2.4mm-male | 3.5mm-female | DC - 26.5 GHz | ≤ 1.15 | |
33_35-24-50_3C1 | 3.5mm-male | 2.4mm-female | DC - 26.5 GHz | ≤ 1.15 |
2.4mm - N
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_24-N-50_3C1 | 2.4mm-female | N-female | DC - 18 GHz | ≤ 1.15 | |
32_24-N-50_3C1 | 2.4mm-male | N-male | DC - 18 GHz | ≤ 1.15 | |
33_24-N-50_3C1 | 2.4mm-male | N-female | DC - 18 GHz | ≤ 1.15 |
2.92mm - 2.92mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_292-292-50_3C1 | 2.92mm-female | 2.92mm-female | DC - 40 GHz | ≤ 1.15 | |
32_292-292-50_3C1 | 2.92mm-male | 2.92mm-male | DC - 40 GHz | ≤ 1.15 | |
33_292-292-50_3C1 | 2.92mm-male | 2.92mm-female | DC - 40 GHz | ≤ 1.15 | |
34_292-292-50_3C1 | 2.92mm-female | 2.92mm-female | DC - 40 GHz | ≤ 1.15 | |
37_292-292-50_3C1 | 2.92mm-female | 2.92mm-female | DC - 40 GHz | ≤ 1.15 | |
52_292-292-50_3C1 | 2.92mm-male | 2.92mm-male | DC - 40 GHz | ≤ 1.25 | |
53_292-292-50_3C1 | 2.92mm-male | 2.92mm-female | DC - 40 GHz | ≤ 1.25 |
2.92mm - 3.5mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_292-35-50_3C1 | 2.92mm-female | 3.5mm-female | DC - 26.5 GHz | ≤ 1.15 | |
32_292-35-50_3C1 | 2.92mm-male | 3.5mm-male | DC - 26.5 GHz | ≤ 1.15 | |
33_292-35-50_3C1 | 2.92mm-male | 3.5mm-female | DC - 26.5 GHz | ≤ 1.15 | |
33_35-292-50_3C1 | 3.5mm-male | 2.92mm-female | DC - 26.5 GHz | ≤ 1.15 |
2.92mm - N
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_292-N-50_3C1 | 2.92mm-female | N-female | DC - 18 GHz | ≤ 1.15 | |
32_292-N-50_3C1 | 2.92mm-male | N-male | DC - 18 GHz | ≤ 1.15 | |
33_292-N-50_3C1 | 2.92mm-male | N-female | DC - 18 GHz | ≤ 1.15 | |
33_N-292-50_3C1 | N-male | 2.92mm-female | DC - 18 GHz | ≤ 1.15 |
3.5mm - 3.5mm
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_35-35-50_3C1 | 3.5mm-female | 3.5mm-female | DC - 26.5 GHz | ≤ 1.15 | |
32_35-35-50_3C1 | 3.5mm-male | 3.5mm-male | DC - 26.5 GHz | ≤ 1.15 | |
33_35-35-50_3C1 | 3.5mm-male | 3.5mm-female | DC - 26.5 GHz | ≤ 1.15 | |
34_35-35-50_3C1 | 3.5mm-female | 3.5mm-female | DC - 26.5 GHz | ≤ 1.15 | |
37_35-35-50_3C1 | 3.5mm-female | 3.5mm-female | DC - 26.5 GHz | ≤ 1.15 |
N - SMA
产品型号 | 接口 1 | 接口 2 | 频率 | VSWR | 下载 |
31_N-SMA-50_3C1 | N-female | SMA-female | DC - 18 GHz | ≤ 1.15 | |
32_N-SMA-50_3C1 | N-male | SMA-male | DC - 18 GHz | ≤ 1.15 | |
33_N-SMA-50_3C1 | N-male | SMA-female | DC - 18 GHz | ≤ 1.15 | |
33_SMA-N-50_3C1 | SMA-male | N-female | DC - 18 GHz | ≤ 1.15 |
如需其他类型转接器,欢迎随时系我们。
