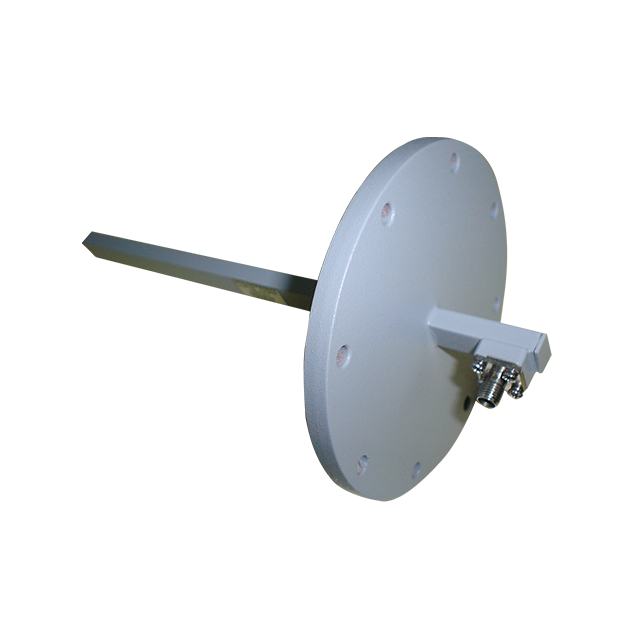

Open-ended waveguide probes are ideally suited for near-field measurements, these probes are used to sample the radiated electromagnetic field of an antenna under test with lower interference between the probe and AUT.
They are designed for excellent VSWR, long-term stability and outstanding repeatability.
Features
High linear polarization purity
Low loss and high efficiency
Rectangular open-ended waveguide
High reliability mechanical design
Applications
Satellite antenna testing
General antenna testing
Radome testing
Wireless communication
Solution for
Near-field antenna measurements
Calibration and polarization reference
Customization services
Custom mount options
Removable absorber plate unit
Precision polarization alignment unit
Length of the probe
RF interface
Coating color
Open-ended waveguide probes are ideally suited for near-field measurements, these probes are used to sample the radiated electromagnetic field of an antenna under test with lower interference between the probe and AUT.
They are designed for excellent VSWR, long-term stability and outstanding repeatability.
Features
High linear polarization purity
Low loss and high efficiency
Rectangular open-ended waveguide
High reliability mechanical design
Applications
Satellite antenna testing
General antenna testing
Radome testing
Wireless communication
Solution for
Near-field antenna measurements
Calibration and polarization reference
Customization services
Custom mount options
Removable absorber plate unit
Precision polarization alignment unit
Length of the probe
RF interface
Coating color
Open-ended waveguide probes (A)
Model | Frequency | VSWR | Dimensions (mm) | Download | |
D | L | ||||
ANTP01-0006N-X-111 | 0.49-0.75 GHz | ≤ 2.2 | 815 | 1047 | |
ANTP01-0009N-X-111 | 0.75-1.15 GHz | ≤ 2.2 | 815 | 994 | |
ANTP01-0012N-X-111 | 0.96-1.46 GHz | ≤ 2.2 | 930 | 1140 | |
ANTP01-0014N-X-111 | 1.13-1.73 GHz | ≤ 2.2 | 815 | 959 | |
ANTP01-0022N-X-111 | 1.72-2.61 GHz | ≤ 2.2 | 610 | 726 | |
ANTP01-0032N-X-111 | 2.60-3.95 GHz | ≤ 2.2 | 405 | 502 | |
ANTP01-0048N-X-111 | 3.95-5.85 GHz | ≤ 2.2 | 330 | 420 | |
ANTP01-0070N-X-111 | 5.38-8.20 GHz | ≤ 2.2 | 330 | 410 | |
ANTP01-0084N-X-111 | 6.57-9.99 GHz | ≤ 2.2 | 280 | 334 | |
ANTP01-0100S-X-111 | 8.20-12.5 GHz | ≤ 2.2 | 280 | 334 | |
ANTP01-0140S-X-111 | 11.9-18.0 GHz | ≤ 2.2 | 280 | 322 | |
ANTP01-0220K-X-211 | 17.6-26.7 GHz | ≤ 2.2 | 280 | 320 | |
ANTP01-0260K-X-211 | 21.7-33.0 GHz | ≤ 2.2 | 280 | 320 | |
ANTP01-0320K-X-211 | 26.5-40.0 GHz | ≤ 2.2 | 280 | 321 |
Open-ended waveguide probes (B)
Model | Frequency | VSWR | Dimensions (mm) | Download | |
D | L | ||||
ANTP03-0009N-X-111 | 0.75-1.15 GHz | ≤ 2.2 | 799 | 977 | |
ANTP03-0014N-X-111 | 1.13-1.73 GHz | ≤ 2.2 | 801 | 945 | |
ANTP03-0022N-X-111 | 1.72-2.61 GHz | ≤ 2.2 | 523 | 639 | |
ANTP03-0032N-X-111 | 2.60-3.95 GHz | ≤ 2.2 | 348 | 445 | |
ANTP03-0048N-X-111 | 3.94-5.85 GHz | ≤ 2.2 | 221 | 311 | |
ANTP03-0070N-X-111 | 5.38-8.20 GHz | ≤ 2.2 | 195 | 276 | |
ANTP03-0100S-X-111 | 8.20-12.5 GHz | ≤ 2.2 | 144 | 198 | |
ANTP03-0140S-X-111 | 11.9-18.0 GHz | ≤ 2.2 | 144 | 186 | |
ANTP03-0220K-X-211 | 17.6-26.7 GHz | ≤ 2.2 | 147 | 188 | |
ANTP03-0320K-X-211 | 26.5-40.0 GHz | ≤ 2.2 | 147 | 188 |
