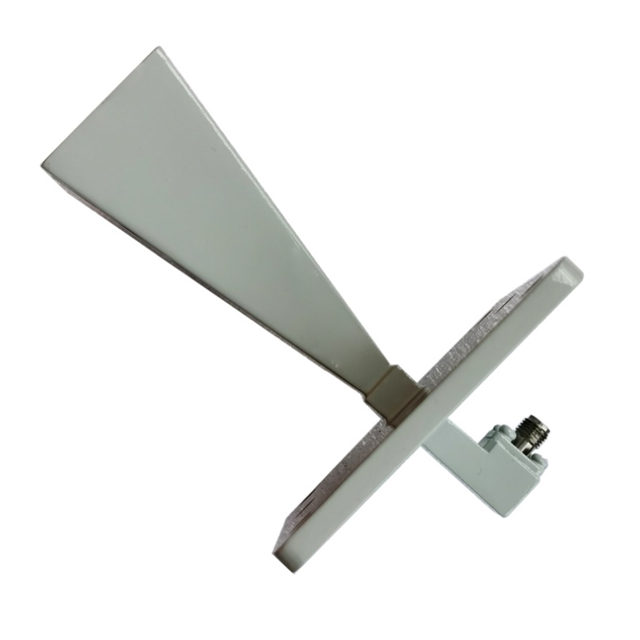

Standard Gain Horn Antennas (Coaxial Interface)

Standard Gain Horn Antennas have stable gain with frequency and low VSWR, they are often used for antenna testing, RF absorber testing or other testing reference, etc.

Download:
Standard-Gain-Horn-Antennas_Catalog.pdf

Availability:

Quantity:



Inquire Add to Basket

Standard Gain Horn Antennas have stable gain with frequency and low VSWR, they are often used for antenna testing, RF absorber testing or other testing reference, etc.

Lorentz's standard gain horn antennas are available to cover the frequency range from 0.32 to 110 GHz, with nominal gain 10 dBi, 15 dBi, 20 dBi and 25 dBi.

Features

Stable gain with frequency
Linear polarization
Excellent VSWR
Robust mechanical design

Applications

General antenna testing
Radome testing
Satellite antenna testing
Wireless communication

Solution for

Gain reference for high gain antennas
Antenna measurements

Customization services

Gain
RF interface
Custom mount options
Operating frequency
Coating color

Standard Gain Horn Antenna with coaxial interface (Nominal gain 10 dBi)

Frequency	Model	Nominal gain	VSWR	RF interface	Download
0.32-0.49 GHz	ANTH01-0003N-10-111	10 dBi	≤ 1.5	N female
0.35-0.53 GHz	ANTH01-0004N-10-111	10 dBi	≤ 1.5	N female
0.41-0.62 GHz	ANTH01-0005N-10-111	10 dBi	≤ 1.5	N female
0.49-0.75 GHz	ANTH01-0006N-10-111	10 dBi	≤ 1.5	N female
0.64-0.98 GHz	ANTH01-0008N-10-111	10 dBi	≤ 1.5	N female
0.75-1.15 GHz	ANTH01-0009N-10-111	10 dBi	≤ 1.5	N female
0.96-1.46 GHz	ANTH01-0012N-10-111	10 dBi	≤ 1.5	N female
1.13-1.73 GHz	ANTH01-0014N-10-111	10 dBi	≤ 1.5	N female
1.45-2.20 GHz	ANTH01-0018N-10-111	10 dBi	≤ 1.5	N female
1.72-2.61 GHz	ANTH01-0022N-10-111	10 dBi	≤ 1.5	N female
2.17-3.30 GHz	ANTH01-0026N-10-111	10 dBi	≤ 1.5	N female
2.60-3.95 GHz	ANTH01-0032N-10-111	10 dBi	≤ 1.5	N female
3.22-4.90 GHz	ANTH01-0040N-10-111	10 dBi	≤ 1.5	N female
3.94-5.99 GHz	ANTH01-0048N-10-111	10 dBi	≤ 1.5	N female
4.64-7.05 GHz	ANTH01-0058N-10-111	10 dBi	≤ 1.5	N female
5.38-8.20 GHz	ANTH01-0070N-10-111	10 dBi	≤ 1.5	N female
6.57-9.99 GHz	ANTH01-0084N-10-111	10 dBi	≤ 1.5	N female
8.20-12.5 GHz	ANTH01-0100N-10-111	10 dBi	≤ 1.5	N female
9.84-15.0 GHz	ANTH01-0120N-10-111	10 dBi	≤ 1.5	N female
11.9-18.0 GHz	ANTH01-0140S-10-111	10 dBi	≤ 1.5	SMA female
14.5-22.0 GHz	ANTH01-0180S-10-111	10 dBi	≤ 1.5	SMA female
17.6-26.7 GHz	ANTH01-0220K-10-211	10 dBi	≤ 1.5	2.92mm female
21.7-33.0 GHz	ANTH01-0260K-10-211	10 dBi	≤ 1.5	2.92mm female
26.3-40.0 GHz	ANTH01-0320K-10-211	10 dBi	≤ 1.5	2.92mm female
32.9-50.0 GHz	ANTH01-040024-10-211	10 dBi	≤ 1.5	2.4mm female

Standard Gain Horn Antenna with coaxial interface (Nominal gain 15 dBi)

Frequency	Model	Nominal gain	VSWR	RF interface	Download
0.75-1.15 GHz	ANTH01-0009N-15-111	15 dBi	≤ 1.5	N female
0.96-1.46 GHz	ANTH01-0012N-15-111	15 dBi	≤ 1.5	N female
1.13-1.73 GHz	ANTH01-0014N-15-111	15 dBi	≤ 1.5	N female
1.45-2.20 GHz	ANTH01-0018N-15-111	15 dBi	≤ 1.5	N female
1.72-2.61 GHz	ANTH01-0022N-15-111	15 dBi	≤ 1.5	N female
2.17-3.30 GHz	ANTH01-0026N-15-111	15 dBi	≤ 1.5	N female
2.60-3.95 GHz	ANTH01-0032N-15-111	15 dBi	≤ 1.5	N female
3.22-4.90 GHz	ANTH01-0040N-15-111	15 dBi	≤ 1.5	N female
3.94-5.99 GHz	ANTH01-0048N-15-111	15 dBi	≤ 1.5	N female
4.64-7.05 GHz	ANTH01-0058N-15-111	15 dBi	≤ 1.5	N female
5.38-8.20 GHz	ANTH01-0070N-15-111	15 dBi	≤ 1.5	N female
6.57-9.99 GHz	ANTH01-0084N-15-111	15 dBi	≤ 1.5	N female
8.20-12.5 GHz	ANTH01-0100N-15-111	15 dBi	≤ 1.5	N female
9.84-15.0 GHz	ANTH01-0120N-15-111	15 dBi	≤ 1.5	N female
11.9-18.0 GHz	ANTH01-0140S-15-111	15 dBi	≤ 1.5	SMA female
14.5-22.0 GHz	ANTH01-0180S-15-111	15 dBi	≤ 1.5	SMA female
17.6-26.7 GHz	ANTH01-0220K-15-211	15 dBi	≤ 1.5	2.92mm female
21.7-33.0 GHz	ANTH01-0260K-15-211	15 dBi	≤ 1.5	2.92mm female
26.3-40.0 GHz	ANTH01-0320K-15-211	15 dBi	≤ 1.5	2.92mm female
32.9-50.0 GHz	ANTH01-040024-15-211	15 dBi	≤ 1.5	2.4mm female

Standard Gain Horn Antenna with coaxial interface (Nominal gain 25 dBi)

Frequency	Model	Nominal gain	VSWR	RF interface	Download
2.60-3.95 GHz	ANTH01-0032N-20-111	20 dBi	≤ 1.5	N female
3.22-4.90 GHz	ANTH01-0040N-20-111	20 dBi	≤ 1.5	N female
3.94-5.99 GHz	ANTH01-0048N-20-111	20 dBi	≤ 1.5	N female
4.64-7.05 GHz	ANTH01-0058N-20-111	20 dBi	≤ 1.5	N female
5.38-8.20 GHz	ANTH01-0070N-20-111	20 dBi	≤ 1.5	N female
6.57-9.99 GHz	ANTH01-0084N-20-111	20 dBi	≤ 1.5	N female
8.20-12.5 GHz	ANTH01-0100N-20-111	20 dBi	≤ 1.5	N female
9.84-15.0 GHz	ANTH01-0120N-20-111	20 dBi	≤ 1.5	N female
11.9-18.0 GHz	ANTH01-0140S-20-111	20 dBi	≤ 1.5	SMA female
14.5-22.0 GHz	ANTH01-0180S-20-111	20 dBi	≤ 1.5	SMA female
17.6-26.7 GHz	ANTH01-0220K-20-211	20 dBi	≤ 1.5	2.92mm female
21.7-33.0 GHz	ANTH01-0260K-20-211	20 dBi	≤ 1.5	2.92mm female
26.3-40.0 GHz	ANTH01-0320K-20-211	20 dBi	≤ 1.5	2.92mm female
32.9-50.0 GHz	ANTH01-040024-20-211	20 dBi	≤ 1.5	2.4mm female
49.8-75.8 GHz	ANTH01-0620185-20-211	20 dBi	≤ 1.8	1.85mm female

Standard Gain Horn Antenna with coaxial interface (Nominal gain 25 dBi)

Frequency	Model	Nominal gain	VSWR	RF interface	Download
6.57-9.99 GHz	ANTH01-0084N-25-111	25 dBi	≤ 1.5	N female
8.20-12.5 GHz	ANTH01-0100N-25-111	25 dBi	≤ 1.5	N female
9.84-15.0 GHz	ANTH01-0120N-25-111	25 dBi	≤ 1.5	N female
11.9-18.0 GHz	ANTH01-0140S-25-111	25 dBi	≤ 1.5	SMA female
14.5-22.0 GHz	ANTH01-0180S-25-111	25 dBi	≤ 1.5	SMA female
17.6-26.7 GHz	ANTH01-0220K-25-211	25 dBi	≤ 1.5	2.92mm female
21.7-33.0 GHz	ANTH01-0260K-25-211	25 dBi	≤ 1.5	2.92mm female
26.3-40.0 GHz	ANTH01-0320K-25-211	25 dBi	≤ 1.5	2.92mm female
32.9-50.0 GHz	ANTH01-040024-25-211	25 dBi	≤ 1.5	2.4mm female
39.2-59.6 GHz	ANTH01-0500185-25-2D1	25 dBi	≤ 1.8	18.5mm female
49.8-75.8 GHz	ANTH01-0620185-25-211	25 dBi	≤ 1.8	1.85mm female
60.5-91.9 GHz	ANTH01-074010-25-2D1	25 dBi	≤ 2.0	1.0mm female
73.8-112 GHz	ANTH01-090010-20-211	25 dBi	≤ 2.5	1.0mm female
