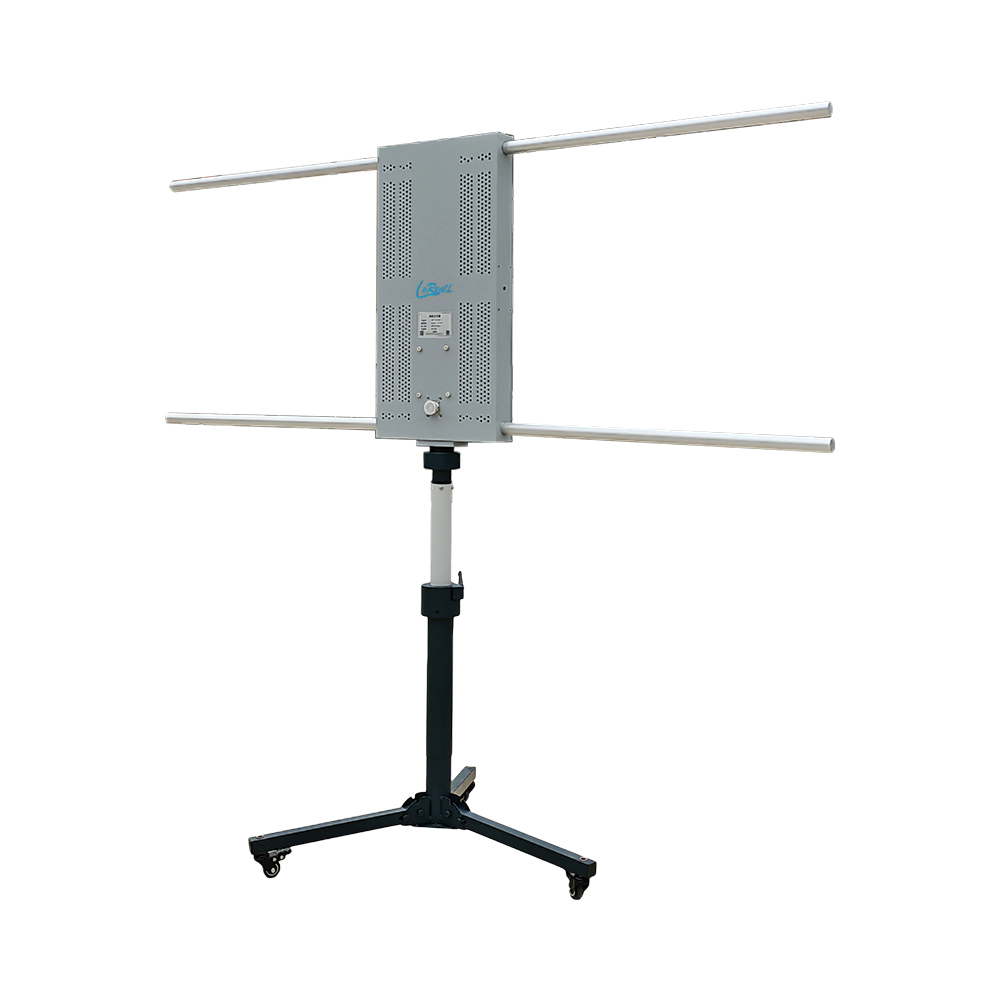

LRET-10K30M-F1
Lorentz
| Quantity: | |
|---|---|
Electromagnetic compatibility test can evaluate whether devices can operate safely in complex electromagnetic environments, and it can also evaluate whether any device affects the safe operation of other devices. Electromagnetic compatibility test is essential for any device for either military or civil use.
E-Field generator is the typical and core equipment which tests the radiation sensitivity of electric field in the electromagnetic compatibility test as transmitting antenna. Our E-Field generator products can meet the test requirements under MIL-STD-461 / GJB 151 standards.
LRET-10K30M-F1
Electrical Data | ||
Frequency range | 10 kHz ~ 30 MHz | |
Impedance | 50 W | |
VSWR | £ 3.0 | |
Max. power input | 3000 W | |
Duty cycle | 100%, continuous | 1000 W (with forced-air cooling) |
100%, continuous | 2000 W (with forced-air cooling) | |
50%, 5 minutes | 3000 W (with forced-air cooling) | |
Cooling method | Active cooling (220V AC input) |
Mechanical Data | ||
RF interface | 7/16 female | |
Size | (1886×201×712) mm | |
Weight | 21 kg |
Ordering Information | ||
Base unit | ||
LRET-10K30M-F1: E-field Generator, 10 kHz ~ 30 MHz, 3000 W, 7/16 female | ||
Options | ||
LRET-EFG-C01: Basic bracket (caster) compatible with LRET-10K30M-1 and LRET-10K30M-F1 | ||
LRET-EFG-T01: Bracket (tripod) compatible with LRET-10K30M-1 and LRET-10K30M-F1 | ||
