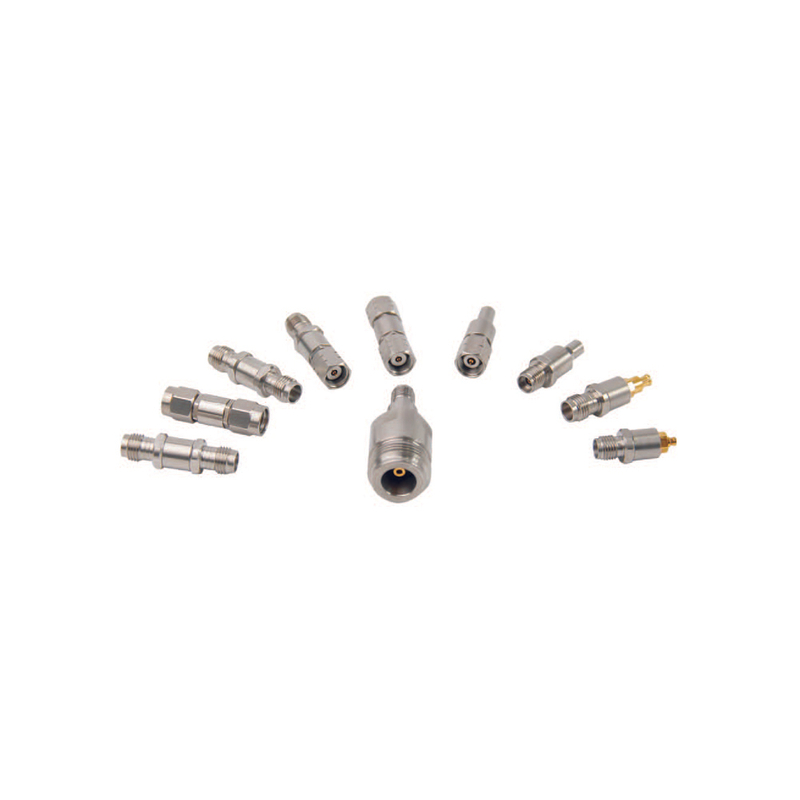

The coaxial adapter is an essential and important part in test & measurement. There are all kinds of different adapters everywhere, such as instrument, DUT, cable assembly and test accessory, which are used for the adaptation between different RF interfaces.
Lorentz offers a series of coaxial adapters with excellent VSWR, long-term stability and outstanding repeatability up to 110GHz.
1.0 mm | 1.85 mm | 2.4 mm | 2.92 mm | 3.5 mm | SMA | N | 7/16 | |
1.0 mm | √ | √ | ||||||
1.85 mm | √ | √ | √ | √ | ||||
2.4 mm | √ | √ | √ | √ | √ | |||
2.92 mm | √ | √ | √ | √ | √ | |||
3.5 mm | √ | √ | √ | √ | √ | |||
SMA | √ | √ | √ | √ | ||||
N | √ | √ | √ | √ | √ | √ | ||
7/16 | √ | √ | √ | |||||
Please don't hesitate to contact us if you need other adapters. | ||||||||
Adapter patterns
31 |
| 32 |
| 33 |
| |
female-female | male-male | male-female | ||||
34 |
| 35 |
| 36 |
| |
Bulkhead, female-female | Bulkhead, male-male | Bulkhead, male-female | ||||
37 |
| 38 |
| 39 |
| |
Panel, female-female) | Panel, male-male | Panel, male-female | ||||
51 |
| 52 |
| 53 |
| |
L-adapter, female-female | L-adapter, male-male | L-adapter, male-female | ||||
