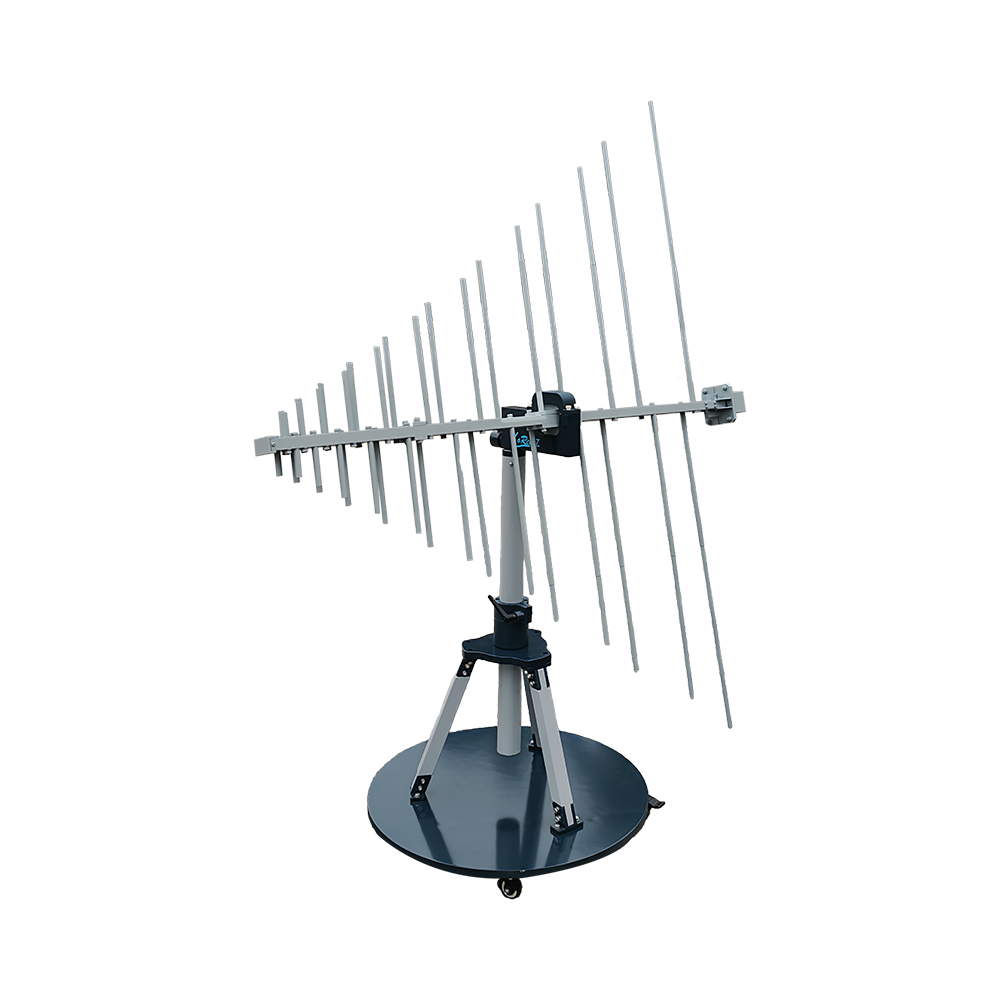

LRET-80M1G-1
Lorentz
| Quantity: | |
|---|---|
Electrical Data | |
Frequency range | 80 MHz ~ 1 GHz |
Impedance | 50 W |
VSWR | £ 2.5 |
Max. power input | 2000 W |
Mechanical Data | ||
RF interface | 7/16 female | |
Size | (1927x1663x120) mm | |
Weight | 7.8 kg | |
Mounting bracket | Available as option |
Ordering Information | ||
Base unit | ||
LRET-80M1G-1: Log Periodic Antenna, 80 MHz ~ 1 GHz, 2000 W, 7/16 female | ||
Options | ||
LR-LPAB-C01: Swivel caster bracket for LRET-80M1G-1 | ||
Electrical Data | |
Frequency range | 80 MHz ~ 1 GHz |
Impedance | 50 W |
VSWR | £ 2.5 |
Max. power input | 2000 W |
Mechanical Data | ||
RF interface | 7/16 female | |
Size | (1927x1663x120) mm | |
Weight | 7.8 kg | |
Mounting bracket | Available as option |
Ordering Information | ||
Base unit | ||
LRET-80M1G-1: Log Periodic Antenna, 80 MHz ~ 1 GHz, 2000 W, 7/16 female | ||
Options | ||
LR-LPAB-C01: Swivel caster bracket for LRET-80M1G-1 | ||
