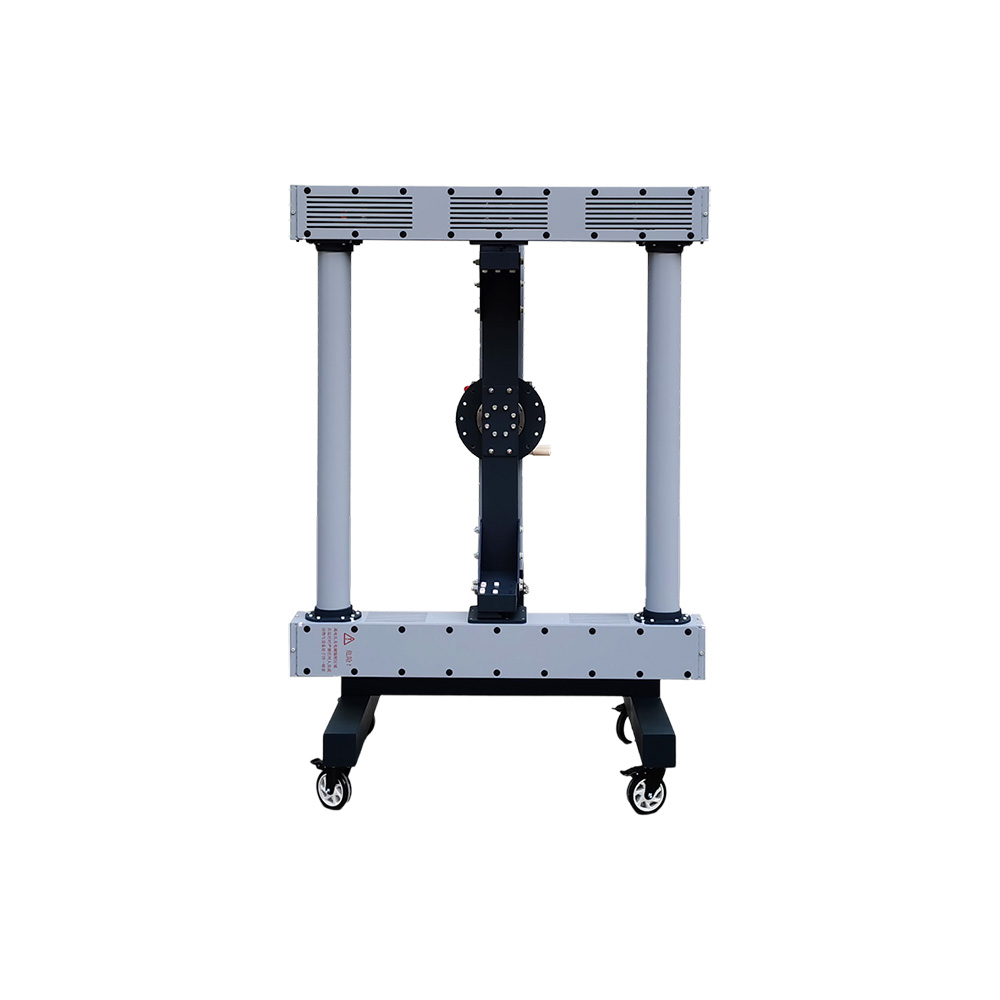

LRET-10K100M-S1
Lorentz
Availability: | |
---|---|
Quantity: | |
Electromagnetic compatibility test can evaluate whether devices can operate safely in complex electromagnetic environments, and it can also evaluate whether any device affects the safe operation of other devices. Electromagnetic compatibility test is essential for any device for either military or civil use.
E-Field generator is the typical and core equipment which tests the radiation sensitivity of electric field in the electromagnetic compatibility test as transmitting antenna. Our E-Field generator products can meet the test requirements under MIL-STD-461 / GJB 151B standards.
LRET-10K100M-S1
Electrical Data | |
Frequency range | 10 kHz ~ 100 MHz |
Impedance | 50 W |
VSWR | £ 2.5 |
Max. power input | £ 3000 W |
Field strength | See picture |

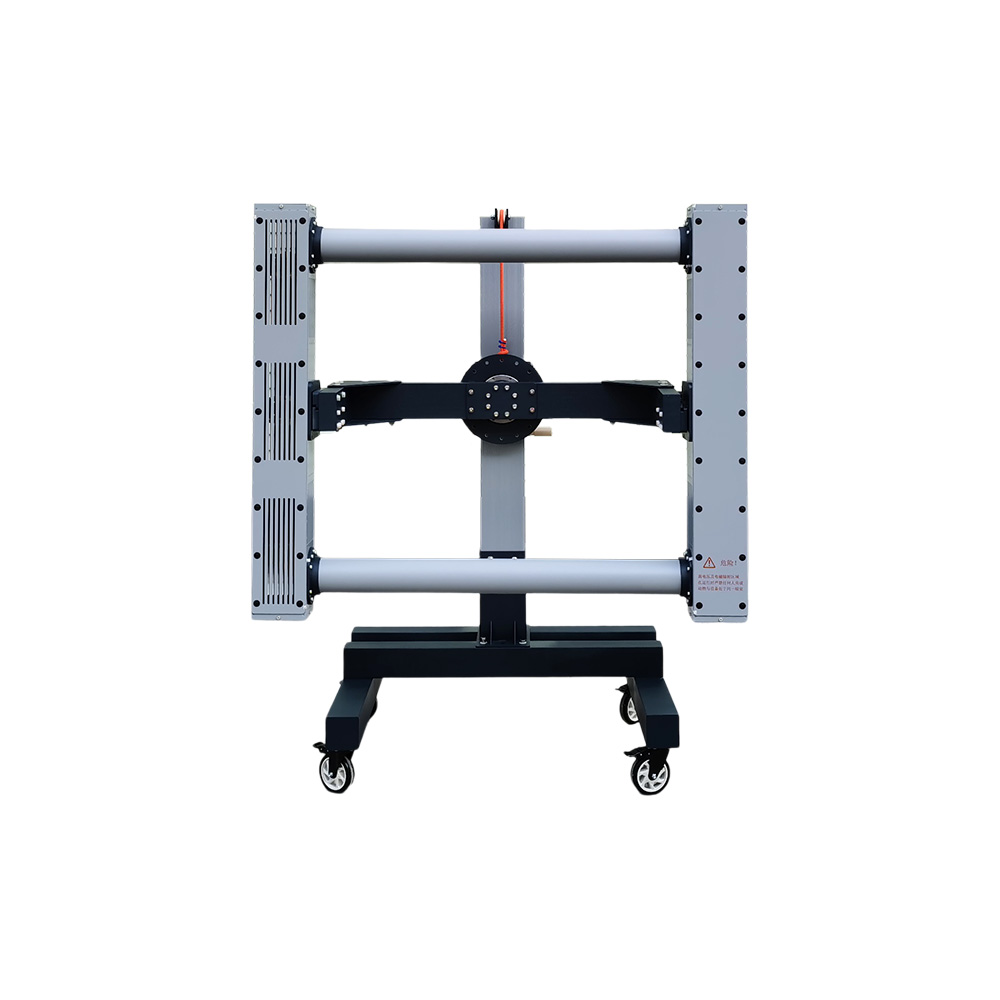

Polarization rotation | Yes (vertical polarization and horizontal polarization) |
Mechanical Data | ||
RF interface | 7/16 female | |
Size | See outline drawings | |
Weight | 76 kg | |
Ordering Information | ||
Base unit | ||
LRET-10K100M-S1: E-field Generator, 10 kHz ~ 100 MHz, 3000 W, 7/16 female | ||
Options | ||
