LRET-1G6G-1

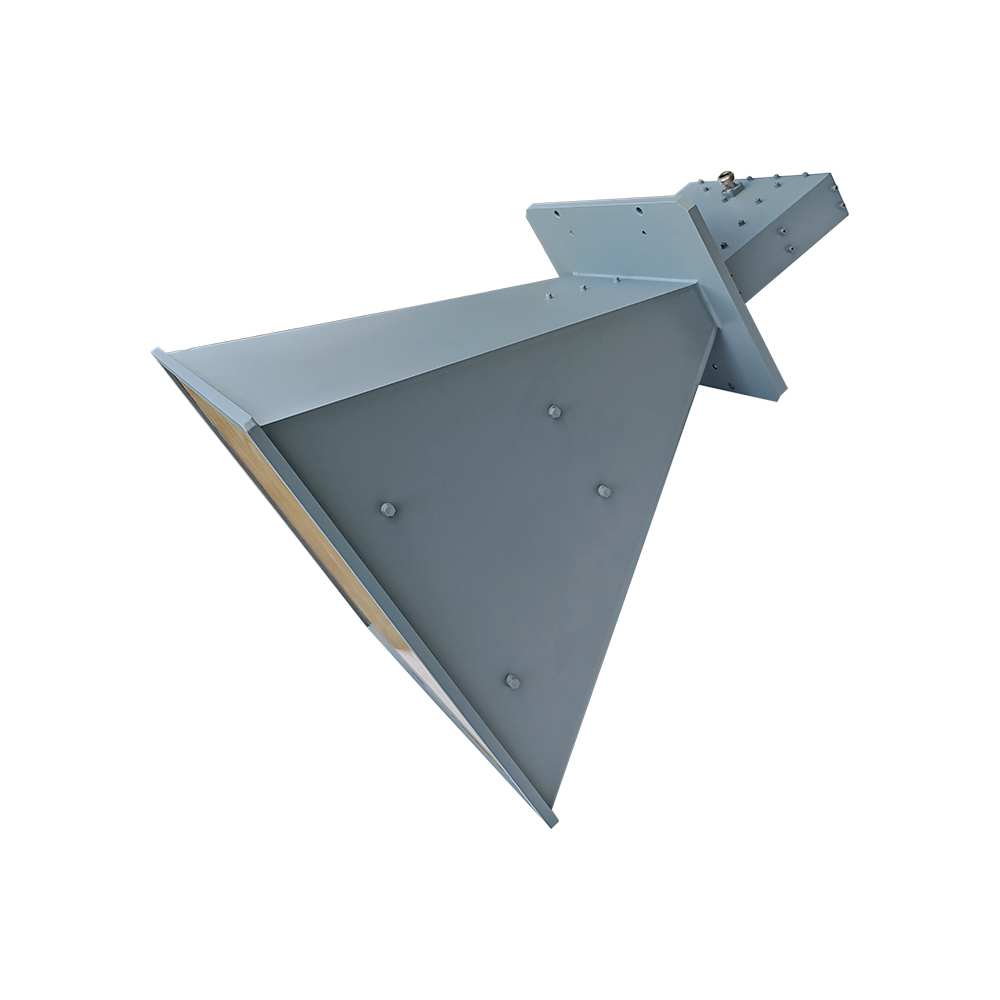

LRET-1G6G-1 is a wide band, high gain, microwave horn antenna that provides high field intensities. It's ideally suited for Radiated Susceptibility Test (Electric Field).

Model:
LRET-1G6G-1
Brand:
Lorentz
Download:
EMC Test Antennas Catalogue_202608.pdf

Availability:

Quantity:



Inquire Add to Basket

Product Description

Electrical Data
Frequency range	1.0 ~ 6.0 GHz
Impedance	50 W
VSWR	£ 2.5
Gain	³ 10 dBi
3 dB Beamwidth	22.2 ~ 52.9 °	E-Plane
	14.9 ~ 48.9 °	H-Plane
Max. power input	300 W

Mechanical Data
RF interface	N female
Size	(816.4´416.1´291.1) mm
Weight	11 kg
Mounting bracket	Available as option

Ordering Information
Base unit
LRET-1G6G-1: Horn Antenna, 1.0 ~ 6.0 GHz, 300 W, N female
Options

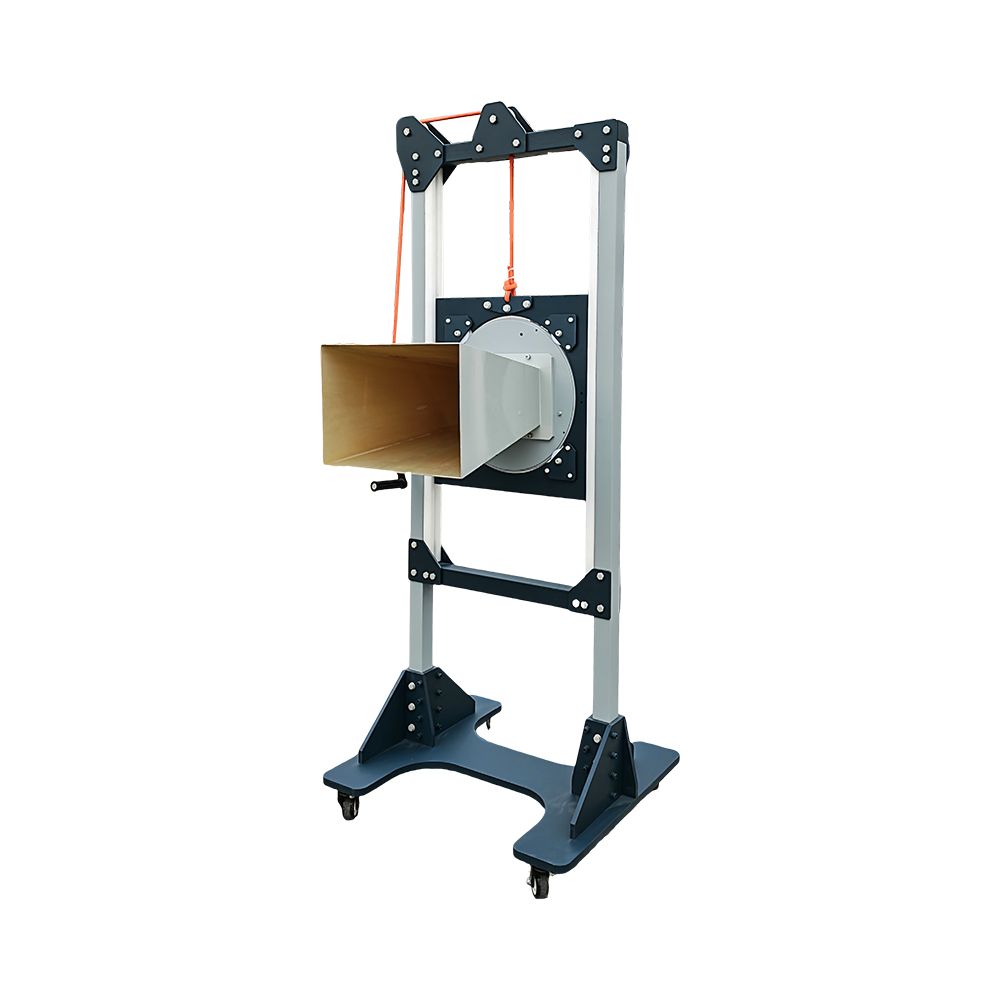

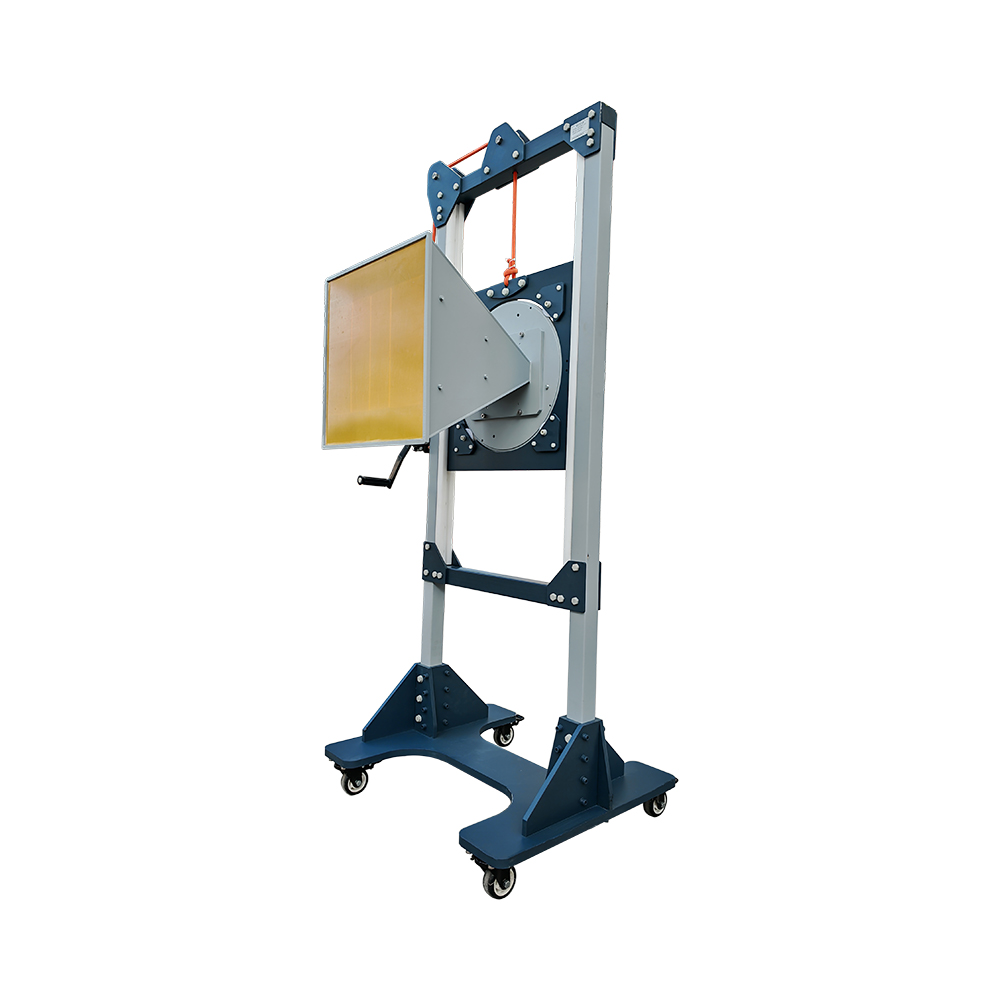

LRET-1G6G-1_A01: Swivel caster bracket for LRET-1G6G-1

LRET-1G6G-1 Horn Antenna transmit antenna RS103
