LRET-18G26G-1

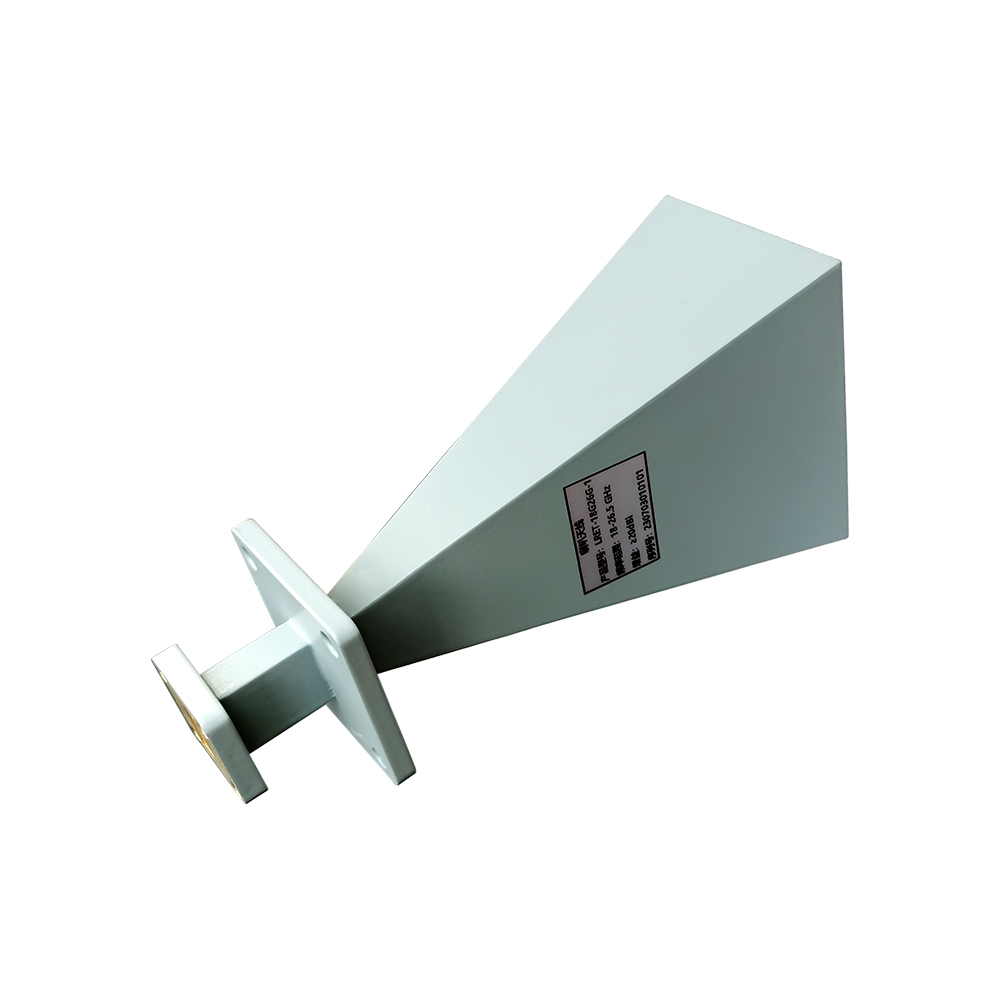

LRET-18G26G-1 is a high gain, microwave horn antenna that provides high field intensities. It’s ideally suited for Radiated Susceptibility Test (Electric Field).

Model:
LRET-18G26G-1
Brand:
Lorentz
Download:
EMC Test Antennas Catalogue_202608.pdf

Availability:

Quantity:



Inquire Add to Basket

Product Description

Electrical Data
Frequency range	18.0 ~ 26.5 GHz
Impedance	50 W
VSWR	£ 1.25
Gain	³ 20 dBi
3 dB Beamwidth	12 ~ 18 °	E-Plane
	12 ~ 17 °	H-Plane
Max. power input	400 W

Mechanical Data
RF interface	FBP220 (WR-42)
Size	(205´90´69.1) mm
Weight	0.45 kg
Mounting bracket	Available as option

Ordering Information
Base unit
LRET-18G26G-1: Horn Antenna, 18.0 ~ 26.5 GHz, 400 W, FBP220 (WR-42)
Options

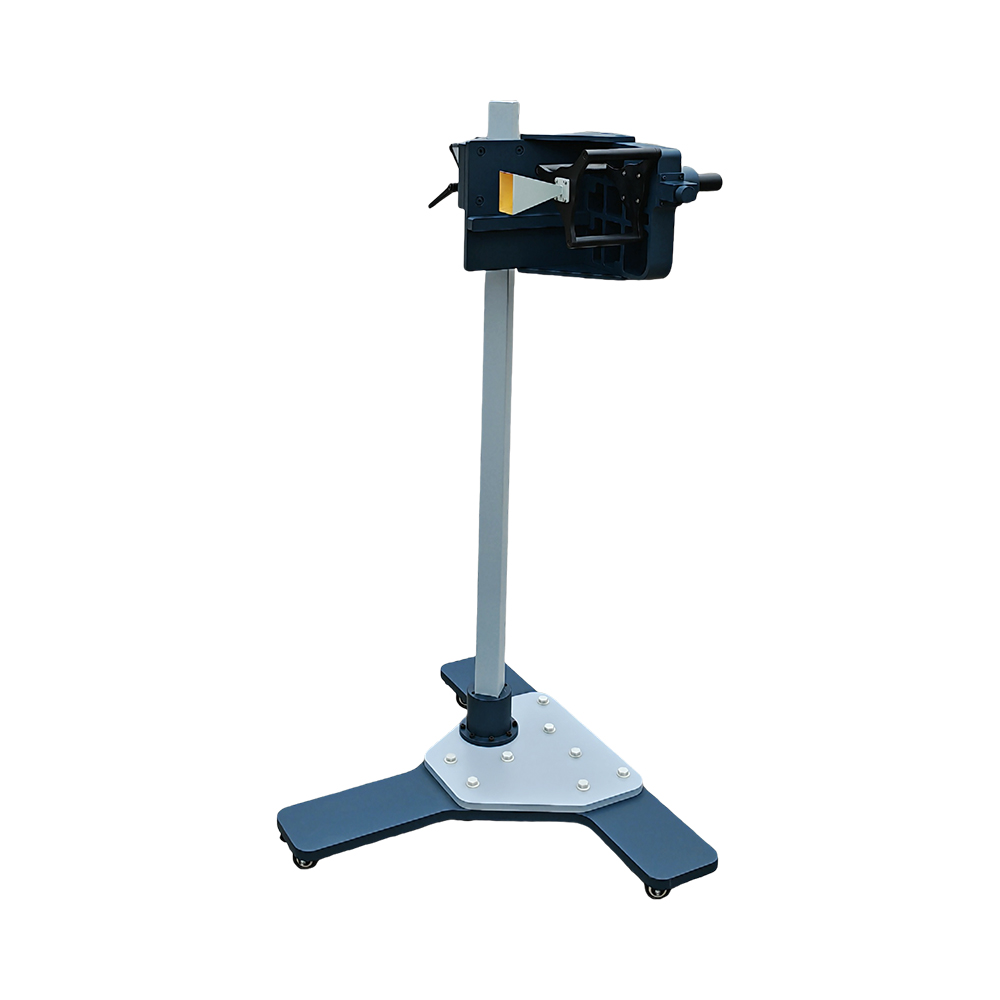

LRET-18G26G-1_A01: Swivel caster bracket for LRET-18G26G-1

LRET-18G26G-1 Horn Antenna transmit antenna RS103
